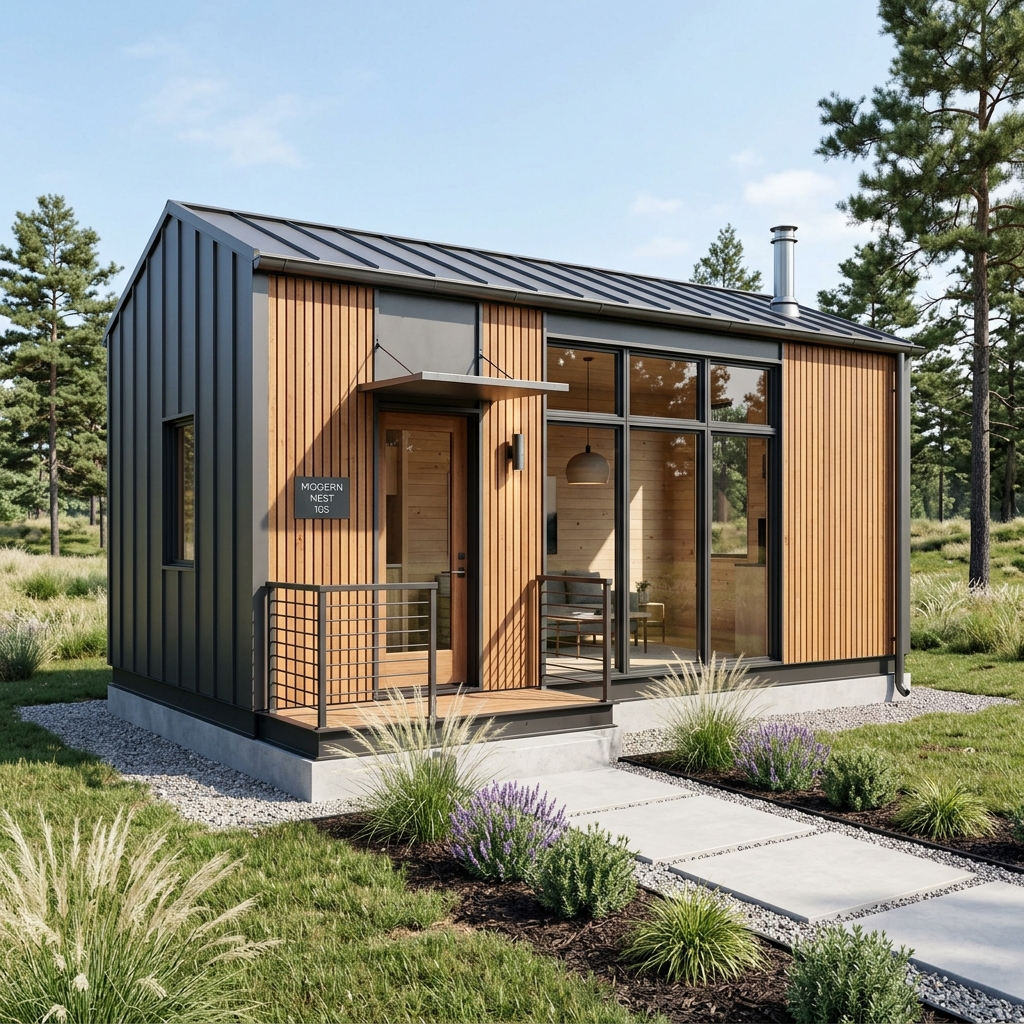

Premium Prefab Housing
Model No-BH-TH-702
Durable, affordable, and beautifully designed prefab homes. The smart housing choice for Bangladesh.
MOST POPULAR
Model No-BH-TH-702
📐 320 sqft
🛏️ 1 Bedroom
🚿 1 Bathroom
🍳 1 Kitchen
Fixed Package Price
৳7,50,000
Overview (Area Details)
Official floor-wise layout dimensions and area specifications for Model No-BH-TH-702.
🏢 Ground Floor Layout
320 sqft| Section | Area (sqft) | Dimensions |
|---|---|---|
| 🛏️Bed room 1 | 120 | 12' × 10' |
| 🛋️Living room | 100 | 10' × 10' |
| 🍳Kitchen | 30 | 6' × 5' |
| 🚿Bath 1 | 20 | 5' × 4' |
| 🌤️Veranda | 20 | 10' × 2' |
| Walls & Circulation | 30 | — |
| Ground Floor Subtotal | 320 sqft |
Total Covered Area
Full Building Structure (1 Floor)
320 sqft
Technical Specification
| Item | Description |
|---|---|
| CODES AND STANDARD | Comply with Bangladesh Nation Building Code (BNBC) |
| EARTHQUAKE CONDITIONS | Earthquake resistant to magnitude 7.5 |
| WIND SPEED VALUE | Cyclone resistant 250 km/h (Must be fixed to the ground) |
| CEMENT | Ordinary Portland Cement (OPC / CEM-I): Contains 95-100% clinker and 0-5% gypsum; graded by compressive strength (52.5 MPa). Brand SHAH CEMENT, AKIJ, CROWN, COSTAL PLAZ. |
| MILD STEEL RODS | ASTM A36 grade Tensile Strength: 410 to 510 MPa. Brand BSRM/AKS/KSRM. |
| STRUCTURAL STEEL | ASTM A36/SS400 grade Tensile Strength: 250 to 345 MPa. |
Material Specification
| Item | Materials |
|---|---|
| FOOTING & SHORT COLUMN | Pre-cast footing is made of reinforced concrete; spreads the weight of a structure over a larger area on ground. |
| GROUND FLOOR | 3 inch pre-cast cement concrete block strength (1:3:6) is to be used |
| OUTER WALL | 3 inch concrete solid block is to be used |
| INNER WALL | 3 inch concrete solid block is to be used |
| ROOF CLADDING | High strength colour coated 0.4mm profile sheet to be used |
| MAIN DOOR | Chowkat Mehagoni wood and Mehagoni palla is to be used |
| BEDROOM DOOR | Chowkat: Mehagoni and Palla: ply wood flashdoor is to be used |
| SECURITY GRILL | 10mm square bar used |
| WINDOW | Standard size Thai Aluminum glass to be used |
| FLOOR TILES | 24 x 24 inch homogenous tiles on floor is used |
| BATHROOM TILES | 12 x 12 inch on floor and 12 x 10 inch on wall is used |
| BATHROOM FITTINGS | Standard metal fittings is to be used |
| ELECTRICAL WIRING | Standard wiring is to be used. |
